Energy storage type cold welder
The emergence of energy storage type cold welding equipment benefits from the emergence of inverter power supply theory and devices. Inverter arc welding power supply firstly rectifying 50/60Hz power frequency AC to DC, and then converting DC to high frequency (such as 30KHz or higher) by using high-power power device IGBT tube.Then step-down rectifier, and then the energy stored in the capacitor, can provide a large current for the single output, through pulse width modulation technology (PWM) output high-power DC source, due to the use of switching power inverter technology welding machine main transformer, reactor weight, volume greatly decreased, efficiency increased by 30%.
Energy storage type cold welder Energy storage type cold welder Energy storage type cold welder

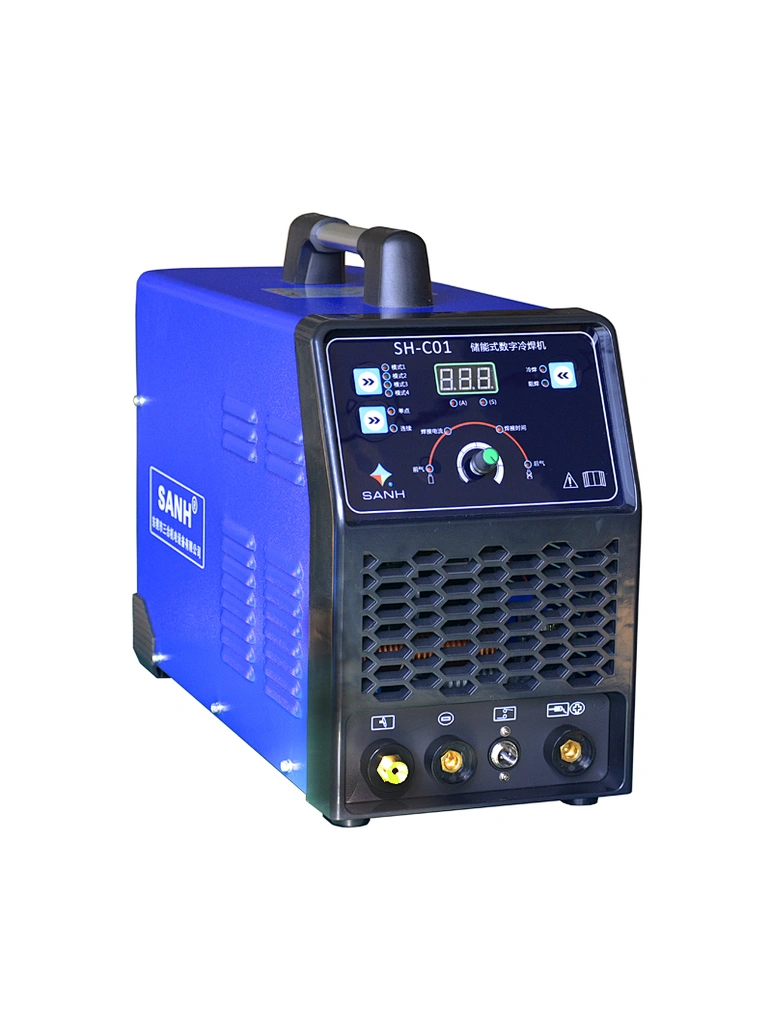

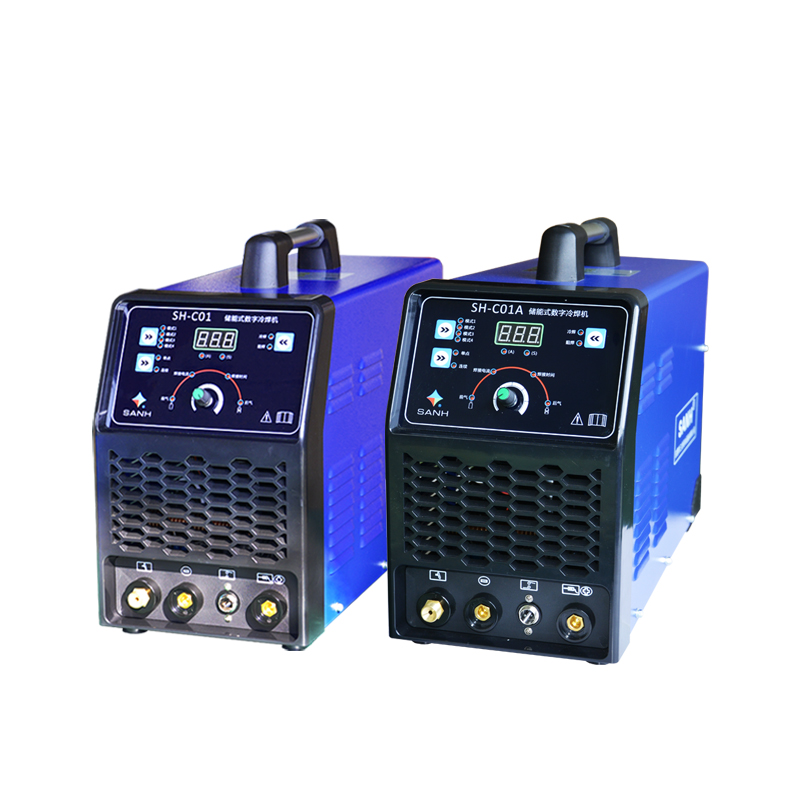

The energy storage cold welder of Sanhe brand is divided into two models: SH-C01 and SH-C01A.Energy storage type cold welder The current regulation range of SH-C01 is 20-400A, and the current regulation range of SH-C01A is 20-500A. Since both cold welders adopt the discharge form of capacitor energy storage, the instantaneous maximum output current can reach 1000A. Can provide a single energy stronger, more concentrated, more stable arc, at the same time with advance air supply, delay off gas and other characteristics; Precise CONTROL OF WELDING TIME, WELDING machine can be in 0.001 seconds welding time welding stability, accurate time control to weld forming and internal quality are achieved the best effect. very suitable for the special requirements of weld.
Energy storage type cold welder
Trihe brand of energy storage type cold welding machine in stainless steel, alloy steel, carbon steel, cold rolled sheet, galvanized sheet, titanium and titanium alloy, copper and other non-ferrous metals welding processing and mold, product defect repair has a good effect. It is mainly used in stainless steel food machinery, cabinet table, advertising words, stainless steel decoration, medical equipment, hotel supplies, gold and silver jewelry, hardware, furniture, small household appliances and other industries to achieve high quality welding work, with the welding spot white, no black discoloration, low welding temperature and small deformation characteristics.
Energy storage type cold welder
Sanhe Energy storage type cold welder SH - C01 / C01A cold welding machine ,welding machine,electric welding machine,Energy storage type cold welder has two energy storage type cold welding and resistance welding welding way, Energy storage type cold weldervery suitable for to all kinds of mould and products in different parts of the sag, hole, hole, crack, grooves, sharp edges, ridge, peak area, trachoma and ordinary surrounding the sag after argon arc welding machine for welding repair, effect is comparable with the laser welding machine, After repair, the edges and corners do not collapse and bite, and the combination is firm and does not fall off.
Energy storage type cold welder，The instant output of the two energy storage cold welders of Sanhe brand is high and the welding time is precisely controlled, which makes the welding between metal materials easier. The novice welder without practical experience can easily weld to a satisfactory effect after simple practice.
Energy storage type cold welder Welcome friends from all walks of life in the process of using the company'swelding machine , will be found or encountered problems in time feedback to us and put forward your valuable suggestions, so that we can better serve you and better improve our products, we are committed to products and services to do a perfect job.
Energy storage type cold welder
| Model | SH-C01by SH-C01 | SH-C01A |
| The power supply voltage(V) | 110-220 | 110-220 |
| Frequency（HZ） | 50/60 | 50/60 |
| Rated input capacity（KVA） | 3.1 | 3.5 |
| Open circuit voltage（V） | 52 | 52 |
| Current regulating range（A） | 20～40020~400 | 20～50020~500 |
| Instantaneous output power（KW） | 50 | 50 |
| Spot welding time（S） | 0.001～0.20.001~0.2 | 0.001～0.20.001~0.2 |
| Duty cycle（%） | 60 | 60 |
| Open circuit losses（W） | 40 | 40 |
| Arc type | high frequency arc ignition | high frequency arc ignition |
| Effective rate（%） | 85 | 85 |
| The power factor | 0.93 | 0.93 |
| Insulation class | F | F |
| Enclosure protection class | IP21 | IP21 |
| Weight（kg） | 18 | 19 |
| Overall dimensions（mm） | 450*200*360450 * 200 * 360 | 450*200*360450 * 200 * 360 |
