An overview

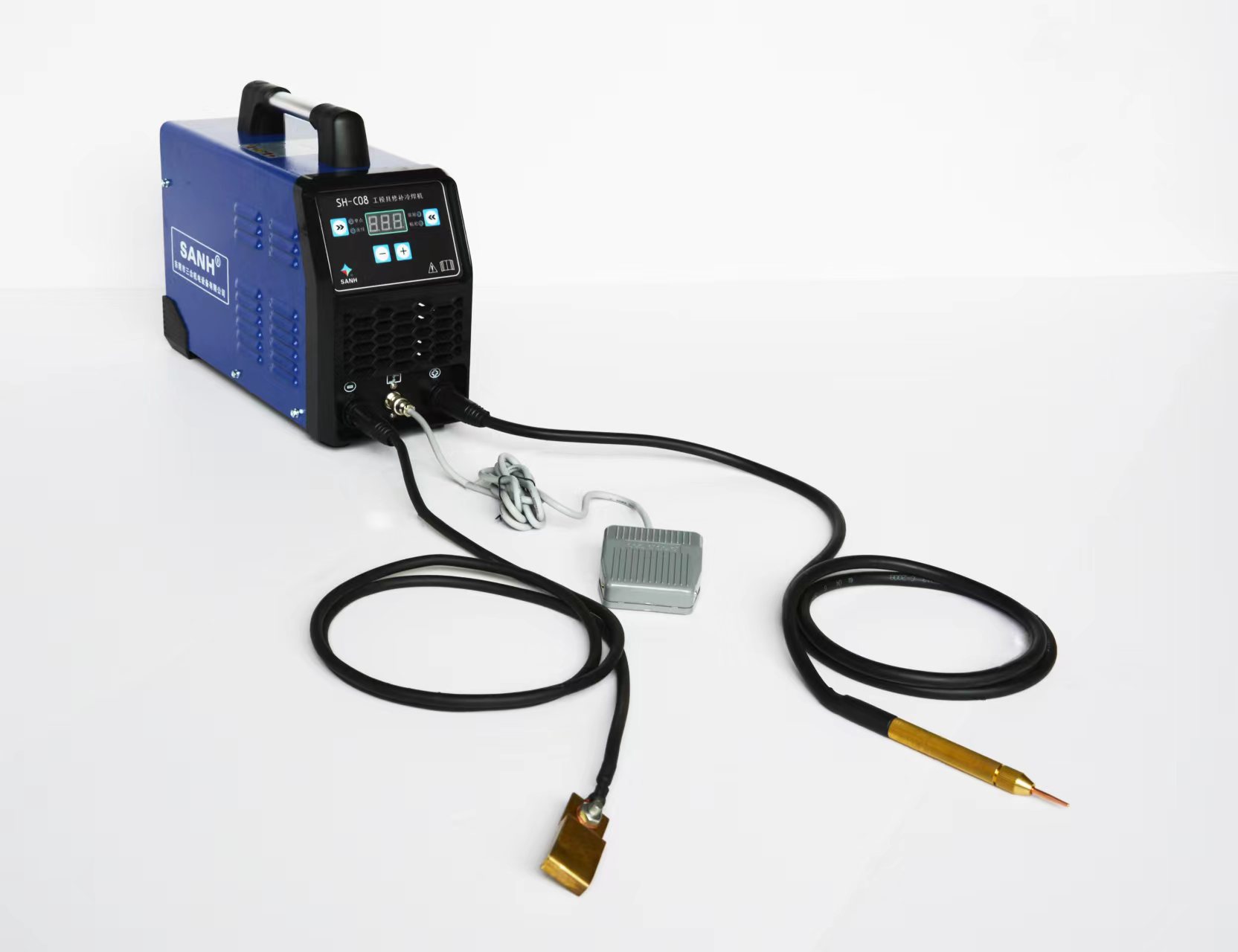

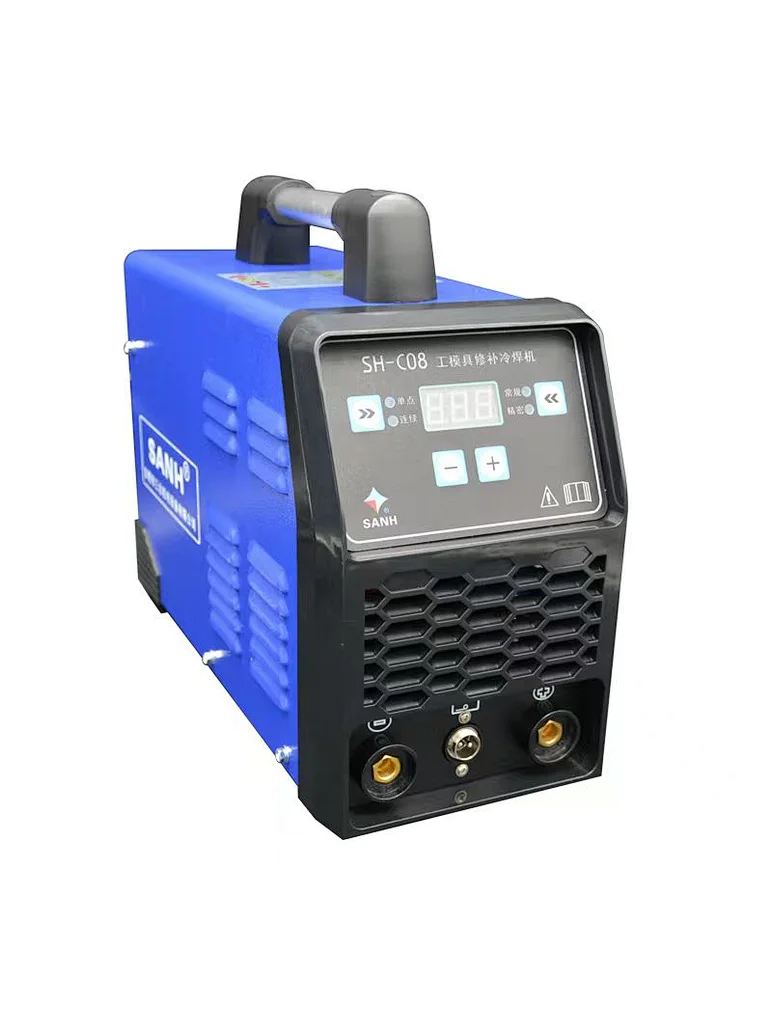

Sh-c08 Mold repair cold welder,

• Repair machine

SH - C08 cold work mould repair welding machine in SH - 08 b microcomputer fill precision welding machine on the basis of the research and development of a microcomputer program control of precise mould repair cold welding equipment, adopting new type portable box structure design, microcomputer control of intelligent adjustment way, touch panel control part adopts full electronic switch, waterproof, prevent pollution, Beautiful not easy to damage and other advantages.

Single-chip microcomputer pure digital electrical design, integration technology content is high, compared with the traditional analog circuit of similar products more stable performance, lower failure rate. It has the characteristics of stable welding quality, solid welding, strong penetration to the base metal and no toxic gas.

Mold repair cold welder is mainly used in the use of industrial mold, plastic mold, extrusion mold and other defects in the process of processing, such as wear, collision, lack of Angle, mold cavity rust spot, turtle crack, or manufacturing process defects, such as over-cutting, size out of tolerance, angular damage, argon welding insufficiency, etc. It can also be used for repairing defects such as local wear and trachoma during the processing and use of shaft and casting products.

Mold repair cold welder,It can be said that this mold repair cold welding machine is you in the mold and product production process and maintenance of the indispensable ideal repair equipment.

Two, the main characteristics and technical parameters

Mold repair cold welder The characteristics of

• Repair machine

(1) High repair accuracy: The current control program written by single chip microcomputer software is adopted in this welder to accurately subdivide the current value of welding materials of various thicknesses and different materials, which for the first time fills the gap of current control program technology of domestic microcomputer chip in the field of repairing (cold welding) equipment. Truly realize the high precision, low voltage, high current, no high temperature, no arc splash welding technology new use, in order to obtain the best power distribution to achieve the best welding effect. The datum level will not be lost when the thin section is repaired, the excess solder is less, and the late shaping is easy. The minimum repair amount can be the thin section accuracy up to 0.01mm. Welding machine can weld thin welding sheet (0.02-0.3mm), welding wire (0.05-1.0mm).

(2) Strong fusion welding strength: because it is integrated with the base material for pressure welding, so the welding strength is high, uniform, not easy to produce sand hole, after repair is easy to manual grinding or grinding, milling, file and other mechanical processing, repair welding area will not fall off and will produce luster after grinding.

(3) The base material damage is small: welding without high temperature, small hot spot, so there is no shrinkage, annealing deformation, discoloration, etc., no damage to the base material.

(4) Wide range of application: In addition to copper, aluminum and other materials with very low resistance, all kinds of metal materials made of workpiece can be repaired.

(5) A variety of control modes: single point and automatic, precision and conventional 4 mode selection, to adapt to different operation and precision requirements.

(6) Convenient electrical connection: equipped with strong magnetic connector, any size of the workpiece can be easily connected to electricity. (or in-line electric rack)

(7), simple operation: can be adapted to the general manual operation.

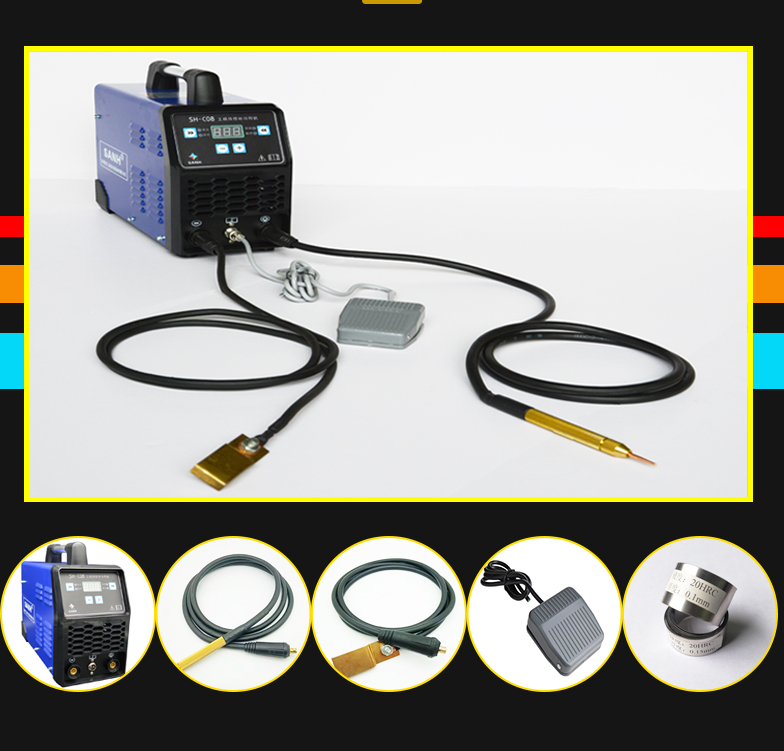

                                             Mold repair cold welder
